Bed CAD Blocks
Six drawings cover the bedroom. There is a bare double bed, the same bed flanked by matching nightstands, a master-bedroom layout that adds a seating area beside it, a single bed with one nightstand, a round bed whose curved headboard wraps the mattress, and a wall lamp in elevation. Everything except the lamp is a plan symbol drawn at real size in metres. Put the beds on a furniture layer, align the headboard to the wall face rather than the wall centreline, and keep about 700 mm clear on the sides someone has to walk down.
20 blocks · every one as DWG and DXF · free, no sign-up
Blocks
Bedroom Wall Lamp
A slim bedside wall lamp with a tapered shade, drawn in plan and in front and side elevation.
Lighting · 34 KB · 34 entities
Double Bed Master Bedroom Layout With Nightstands And Seating Area
Red plan of a double bed with nightstands and a small seating area, one block with a distant stray insert.
Furniture · 73 KB · 1 entities
Double Bed Plan Layout
Simple double bed in plan with two pillows and a turned-down sheet, a 15-entity block at real size.
Furniture · 34 KB · 2 entities
Double bed with curved headboard
Double bed with curved headboard. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 22 KB · 74 entities
Double bed with diagonal blanket fold
Double bed with diagonal blanket fold. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 11 KB · 81 entities
Double bed with folded duvet and end bench
Double bed with folded duvet and end bench. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 11 KB · 63 entities
Double bed with folded duvet and nightstands
Double bed with folded duvet and nightstands. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 11 KB · 67 entities

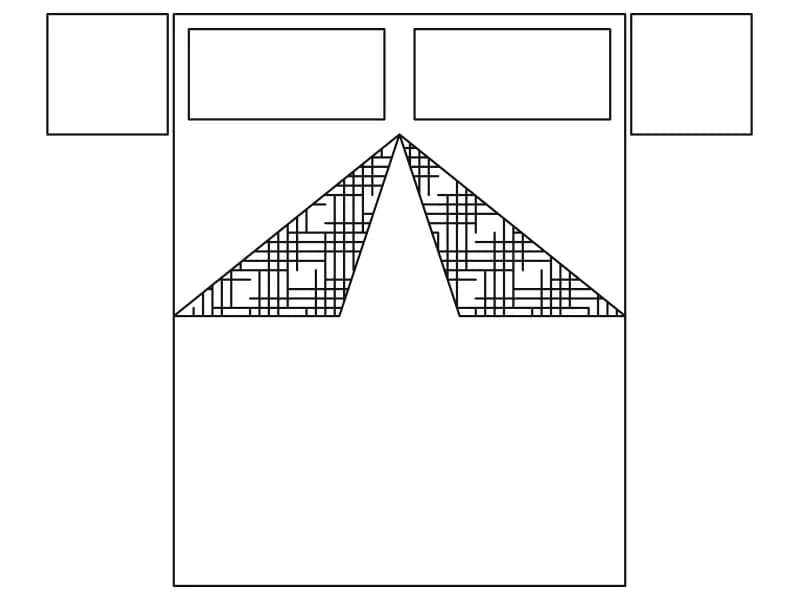

Double Bed With Nightstands
Double bed with two pillows, hatched folded blanket and two square nightstands in plan, one block.
Furniture · 37 KB · 1 entities
Double bed with ottoman and bedside tables
Double bed with ottoman and bedside tables. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 15 KB · 59 entities
Framed twin beds with central bedside table
Framed twin beds with central bedside table. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 11 KB · 118 entities

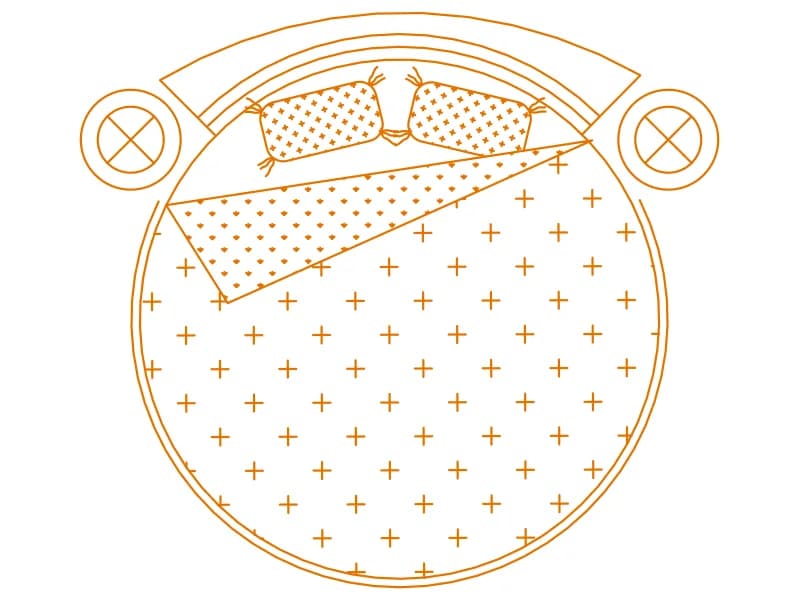

Round Double Bed With Curved Headboard
Circular bed in plan with a curved headboard, folded duvet corner and two round nightstands.
Furniture · 61 KB · 2 entities
Single bed with loose blanket and pillow
Single bed with loose blanket and pillow. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 9 KB · 15 entities
Single Bed With Nightstand
A 1.00 by 2.15 m single bed in plan with pillow, folded sheet corner and a 0.50 m nightstand.
Furniture · 35 KB · 3 entities
Sun lounger with round side table
Sun lounger with round side table. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 8 KB · 7 entities
Twin bedroom with two single beds
Twin bedroom with two single beds. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 11 KB · 81 entities
Twin beds with shared nightstand and benches
Twin beds with shared nightstand and benches. Download the editable DWG or DXF, or open the drawing directly in NASJI to inspect and adapt it.
Furniture · 12 KB · 86 entities
