Door CAD Blocks — Plans, Swings and Elevations

Twenty-three files split three ways. Plan symbols carry the leaf and the arc it sweeps: a single door through 180 degrees, double doors, double-acting pairs and a run of eleven openings on one sheet, nearly all placed on the layer A-Door and measuring 1.8 to 5.4 units. Elevations show the face of the door — three panelled leaves, two arched doors with handles, a classic arched entrance and a shopfront with transom panels. Then the heavy sheets: a gate catalogue of 88,555 entities dimensioned across ten layers, and an interior-door sheet of 6,463 entities.

Insert a plan symbol on the wall centreline and trim the wall back to the jambs; at 1:50 and 1:100 the swing arc is the whole point of the symbol, since it proves the leaf clears the furniture and the corridor. Elevation doors go into door schedules and interior elevations at 1:20 or 1:50. A single leaf is about one unit wide, meaning one metre, so multiply by 1000 for a millimetre drawing, and mirror the insertion rather than redrawing anything when the hinge side changes.

44 blocks · every one as DWG and DXF · free, no sign-up

Blocks

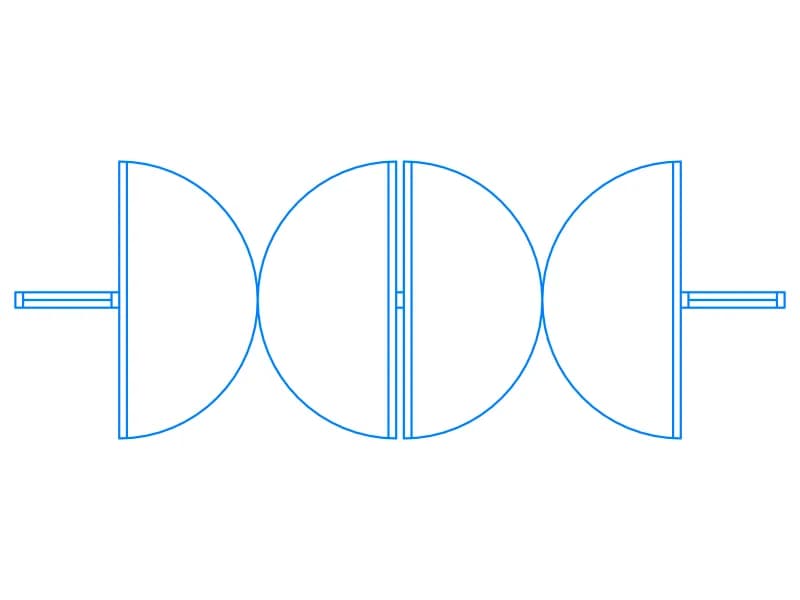

Plan-view CAD block of double-acting double doors with swing circles between wall stubs

Door 2

Plan of double-acting double doors with swing circles both ways, one block about 5.2 units long.

34 KB · 2 entities

DWGDXFOpen

Elevation CAD block of a single three-panel door with lever handle and swing line

Door Elev

Three-panel door leaf in elevation with handle and swing line, one block about 1.0 m by 2.2 m on A-Door.

34 KB · 2 entities

DWGDXFOpen

Elevation CAD block of a double door with push bars and diagonal hinge indicators

Door Elev2

Double door elevation with push bars and diagonal indicators, one 44-line block on A-Door, 1.9 m wide.

35 KB · 2 entities

DWGDXFOpen

Elevation CAD block of a glazed door with twelve square lights and a narrow sidelight

Door Elev3

Glazed twelve-light door leaf with a narrow sidelight in elevation, one 122-line block about 1.3 m wide.

37 KB · 2 entities

DWGDXFOpen

Plan-view CAD block of two adjacent double-acting double doors with swing arcs

Door3

Two double-acting double doors side by side in plan, one block about 5.6 units wide on layer A-Door.

34 KB · 2 entities

DWGDXFOpen

Plan-view CAD block of a four-wing revolving door with curved enclosure walls

Door4

Four-wing revolving door in plan with curved enclosure and wall stubs, one block about 1.8 m across.

35 KB · 2 entities

DWGDXFOpen

Plan-view CAD block of a double door with two 180-degree swing arcs

Door5

Double door in plan with both leaves swinging 180 degrees, one block 2.8 units wide on layer A-Door.

34 KB · 2 entities

DWGDXFOpen

Plan-view CAD block of a square entrance vestibule with double-acting doors at both ends

Door6

Square vestibule in plan with double-acting double doors front and back, one block about 2.2 m square.

35 KB · 2 entities

DWGDXFOpen

Three plan-view door openings labelled 80/210, 90/210 and 240/210

Door7

Three plan-view door openings labelled 80/210, 90/210 and 240/210, on Turkish wall, plaster and door layers.

36 KB · 93 entities

DWGDXFOpen

Plan-view CAD block of double doors in two parallel walls with quarter-arc swings

Door8

Two double doors in parallel walls with 90-degree swings, one block about 3.6 units wide on layer A-Door.

36 KB · 2 entities

DWGDXFOpen

Row of eleven single-leaf door swing CAD blocks in plan, increasing in width

Doors

Eleven plan-view single door symbols of increasing width, each a separate block on A-Door.

38 KB · 12 entities

DWGDXFOpen

Plan-view CAD block of a single door with two jambs and a curved swing path

Doors10

Single-leaf door in plan with drawn jambs and a curved swing path, one block about 1 unit wide.

34 KB · 2 entities

DWGDXFOpen

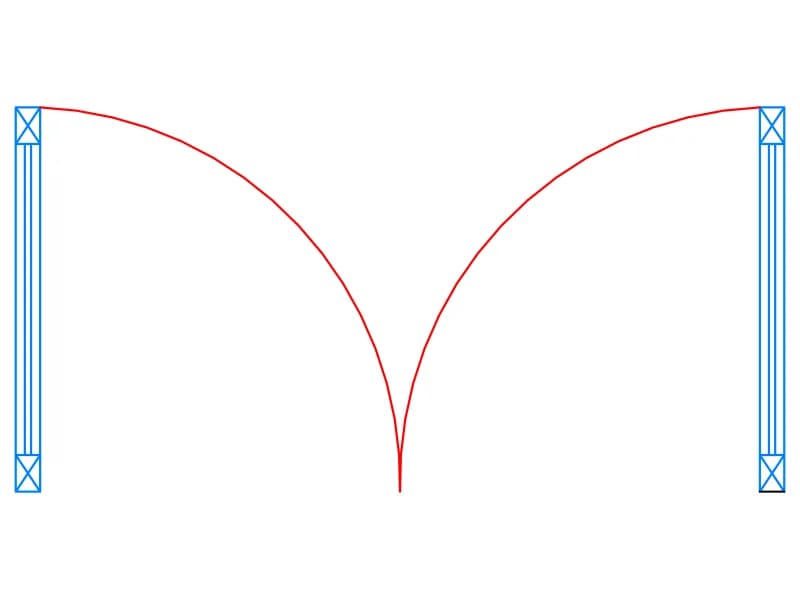

Plan-view CAD block of a double door with boxed jambs and red quarter-arc swings

Doors9

Double door in plan with X-marked jambs and red swing arcs, one block on A-Wall, A-Glaz and A-Door layers.

34 KB · 2 entities

DWGDXFOpen

Detail sheet of chain-link and iron fence panels, gates, hardware and footings

Gates

Detail sheet of chain-link and iron fence panels, gate hardware, operators and footings, drawn in inches.

3.1 MB · 88,555 entities

DWGDXFOpen

Sheet of sixty-seven ornamental iron gate and fence panel elevations

Gates

Sixty-seven ornamental gate and fence panel elevations, each its own block with white fills, in one sheet.

2.3 MB · 68 entities

DWGDXFOpen

Catalogue sheet of about forty interior door elevations in four rows

Interior Doors

Four rows of interior door elevations, around forty types, with a hinge detail and panel notes.

325 KB · 6,463 entities

DWGDXFOpen

Sheet of fifteen wooden front door elevations with stained-glass lights and style names

Wooden Doors

Fifteen named wooden door elevations with panels and stained-glass lights, on Spanish-labelled layers.

138 KB · 2,187 entities

DWGDXFOpen

Questions

Do the plan blocks show the door swing?

Yes. Each plan symbol draws the leaf and the arc it sweeps, so clearances can be checked before the furniture layout goes in.

How do I change the hand of a door?

Mirror the insertion. The geometry is symmetrical about the jamb, so a mirrored copy gives the opposite hand with no editing.

Are elevations included as well as plans?

Seven files are face-on elevations, including arched leaves, a classic panelled entrance and a glazed storefront with transom panels above.
