Ornamental Gate CAD Blocks — 67 Iron Gate and Fence Elevations
Sixty-seven ornamental gate and fence panel elevations, each its own block with white fills, in one sheet.
Up to 100 library downloads per day across all libraries. Resets at 00:00 UTC.
DWG is the original file. DXF is written from it on request. Open in CAD loads it into the free browser CAD — nothing to install, no account.
Specifications
- Format
- DWG R2018 · DXF R2000 on request
- Units
- metres
- Entities
- 68 — 67 block references and 1 text label
- Layers
- 1 (layer 0)
- Block definitions
- none — plain geometry
- File size
- 2.3 MB
- Updated
About this block

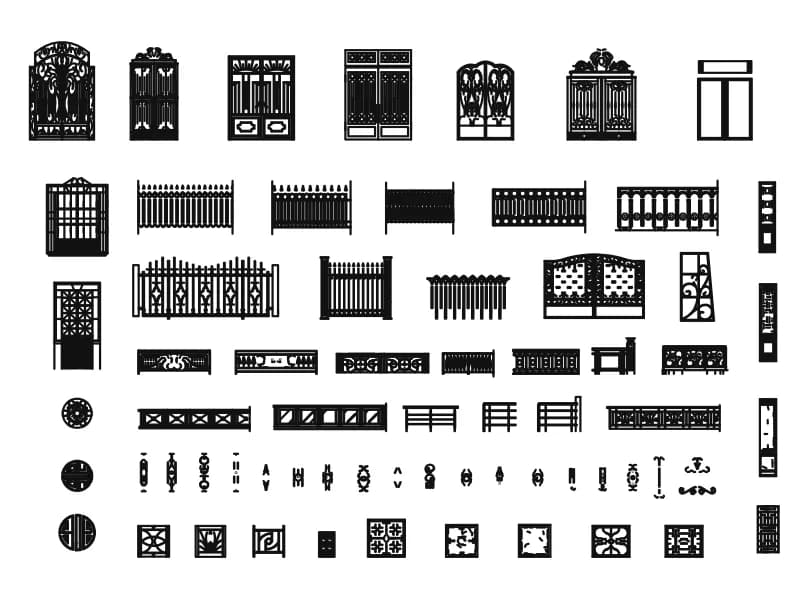

Six rows of wrought-iron work fill this sheet: arched garden gates with scrollwork, pairs of driveway gates, straight railing panels with spear tops, round medallions and a set of small posts and finials near the bottom. Every item is a separate block reference, 67 in all, drawn with white fills so they read as solid silhouettes; the largest definitions run to more than 10,000 lines and ellipses. The drawing carries a units flag of metres but spans about 34,000 by 36,000 units, so it was produced in millimetres, and a Chinese credit line from the original landscape source remains as text.
Landscape architects and gate fabricators use these as elevation references and presentation graphics for boundary walls, driveway entrances and garden enclosures. Insert the one you need at a scale of 0.001 into a metre drawing and check its height, which should come out around 1.8 to 2.4 m for a pedestrian gate. Because the blocks are fills, they print best in colour or greyscale; switch to a wireframe style if you need to trace the bars.
