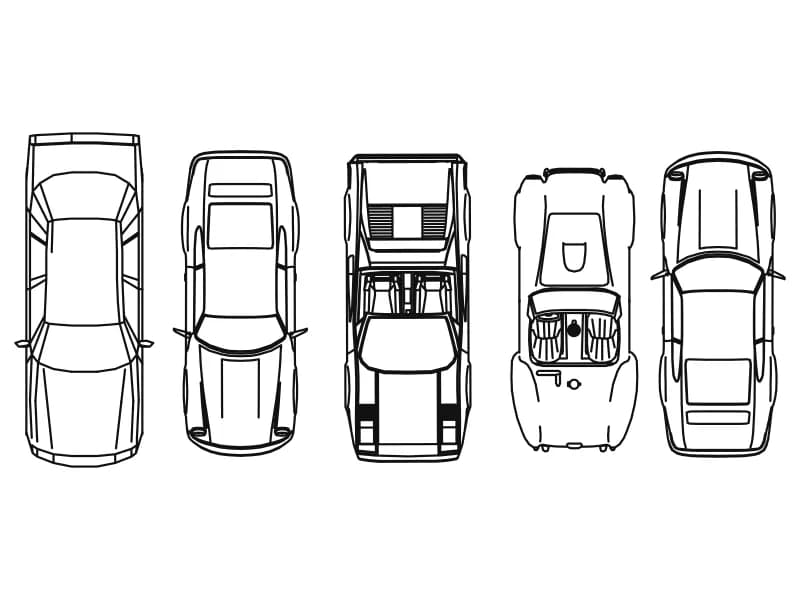

Five car CAD blocks seen from above: saloon, coupe, open convertible and two sports cars
nasji.com · Drawing preview · 6 entities · 3 layers View full size

Vehicles CAD blocks

Five Top-View Car Plans

Five different cars seen from above, drawn full size in millimetres, 3.97 to 4.67 m long.

Download DWG · 109 KBDownload DXFEdit this block in free CAD

Up to 100 library downloads per day across all libraries. Resets at 00:00 UTC.

DWG is the original file. DXF is written from it on request. Open in CAD loads it into the free browser CAD — nothing to install, no account.

Specifications

Format
DWG R2018 · DXF R2000 on request
Units
inches
Entities
6 — 5 block references and 1 paragraph text
Layers
JIASI35
Block definitions
none — plain geometry
File size
109 KB
Updated

About this block

Five separate block definitions hold one car each, every one seen from directly overhead: a saloon with a sunroof, a coupe, an open convertible with the seats and folded roof showing, a low sports car and a fastback. Inside their definitions they are drawn at full size in millimetres, measuring 4,309 by 1,762, 3,966 by 1,765, 4,274 by 1,866 and 4,675 by 1,935, so between 3.97 and 4.67 m long. Two share the same 4,274 by 1,866 footprint, one placed lengthways and one across.

Every insert is then blown up 27.66 times, which is why the sheet reads close to 300,000 units wide. Set each scale back to 1 and you have honest 4.3 m cars for a millimetre parking plan, or use 0.001 in a metre drawing, and a 2.5 by 5.0 m bay can be tested properly. One of the five is placed with a negative X scale: that is the tidy way to turn a parked car around, rather than mirroring a copy and leaving two definitions behind.

Ratings and reviews

Related blocks

Cruiser motorcycle CAD block in front elevation, rear elevation and plan view with hard panniers

Harley

A pannier-equipped touring cruiser in front, rear and plan view, 1,069 entities on four layers.

43 KB · 1,069 entities

DWGDXFOpen

Estate car CAD block in four views: roof plan, side elevation, front elevation and rear elevation

Cars

One estate car drawn four ways: roof plan, side elevation, front elevation and rear.

48 KB · 2 entities

DWGDXFOpen

Side elevation CAD block of an articulated wheel loader with lift arms, tilt ram and bucket

Truck3

Articulated wheel loader in profile with the bucket down, 650 entities drawn in red.

58 KB · 2 entities

DWGDXFOpen

CAD blocks of bicycles in side, front and plan view with an eight-bike parking layout

Bicycle

Bicycle side, front and top views with an eight-bike parking layout, drawn in centimetres.

31 KB · 711 entities

DWGDXFOpen

Plan view CAD block of a four-engine wide-body airliner with swept wings and four underwing engines

Airplane

Top view of a 70 m four-engine wide-body jet, one 283-line block scaled down onto a small sheet.

52 KB · 2 entities

DWGDXFOpen

Side elevation CAD block of a narrow-body twin-jet airliner with the landing gear down

Airplane 5

Profile of a 33.5 m twin-jet airliner with the gear down, drawn at full size in inches.

44 KB · 2 entities

DWGDXFOpen

Questions

Are these cars at real size?

Inside the block definitions, yes, in millimetres. The inserts are enlarged 27.66 times, so set the scale to 1 or to 0.001 for metres.

How do I face a car the other way?

Give the insert a negative X scale. One of the five in the file is already placed that way, so it costs nothing to copy the trick.
