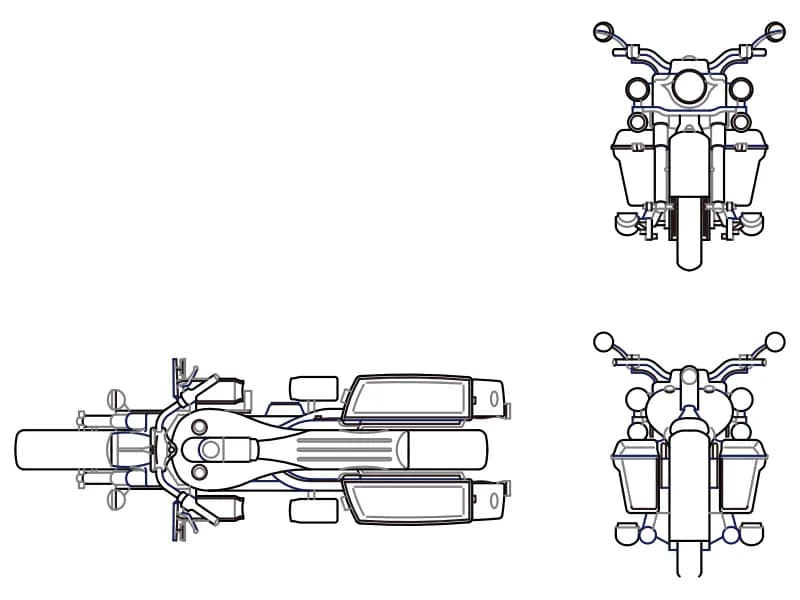

Cruiser motorcycle CAD block in front elevation, rear elevation and plan view with hard panniers
nasji.com · Drawing preview · 1,069 entities · 5 layers View full size

Vehicles CAD blocks

Three-View Cruiser Motorcycle

A pannier-equipped touring cruiser in front, rear and plan view, 1,069 entities on four layers.

Download DWG · 43 KBDownload DXFEdit this block in free CAD

Up to 100 library downloads per day across all libraries. Resets at 00:00 UTC.

DWG is the original file. DXF is written from it on request. Open in CAD loads it into the free browser CAD — nothing to install, no account.

Specifications

Format
DWG R2018 · DXF R2000 on request
Units
metres
Entities
1,069 — 645 lines, 346 arcs, 52 ellipses, 19 circles, 6 polylines and 1 text label
Layers
Auto-s-100Auto-s-20Auto-s-50Auto-s-200
Block definitions
none — plain geometry
File size
43 KB
Updated

About this block

The machine is drawn straight into model space with no block wrapper: 645 lines, 346 arcs, 52 ellipses, 19 circles and 6 polylines, 1,069 entities in all. Three views share the sheet. The front elevation gives you the twin mirrors, headlamp, fork legs and a hard pannier standing out on each side; the rear elevation shows the pannier lids, tail lamp and the exhausts; and the third view looks down on the tank, seat and handlebar spread. Four layers named Auto-s-20 to Auto-s-200 divide the linework.

That layer split is worth keeping: switching one or two of them off thins the bike down for a small-scale plot without redrawing anything. There is no side elevation in this file, which is what the six-view touring machine in this category is for. A stray entity drags the header extents out to six figures, so ignore them, scale the geometry until the wheelbase reads about 1.6 m, and make it a block of your own before you copy it around a parking plan.

Ratings and reviews

Related blocks

Five car CAD blocks seen from above: saloon, coupe, open convertible and two sports cars

Cars2

Five different cars seen from above, drawn full size in millimetres, 3.97 to 4.67 m long.

109 KB · 6 entities

DWGDXFOpen

Touring motorcycle CAD blocks in side elevation, front elevation and plan view with panniers

Moto

One faired touring bike drawn six ways, arc-heavy at 2,105 entities on a single layer.

122 KB · 2,105 entities

DWGDXFOpen

CAD blocks of bicycles in side, front and plan view with an eight-bike parking layout

Bicycle

Bicycle side, front and top views with an eight-bike parking layout, drawn in centimetres.

31 KB · 711 entities

DWGDXFOpen

Sheet of bike rack CAD blocks with front, side, plan and isometric views of about fifty cycle stands

Bike Rack

Around fifty cycle stands, each drawn in four views, in the largest drawing in this library.

21.7 MB · 255,609 entities

DWGDXFOpen

Estate car CAD block in four views: roof plan, side elevation, front elevation and rear elevation

Cars

One estate car drawn four ways: roof plan, side elevation, front elevation and rear.

48 KB · 2 entities

DWGDXFOpen

Side elevation CAD block of a heavy boom truck with the boom laid back over the cab

Truck

Heavy rig truck in profile with a boom over the cab and twin rear axles, 370 entities.

47 KB · 2 entities

DWGDXFOpen

Plan view CAD block of a four-engine wide-body airliner with swept wings and four underwing engines

Airplane

Top view of a 70 m four-engine wide-body jet, one 283-line block scaled down onto a small sheet.

52 KB · 2 entities

DWGDXFOpen

Questions

Is there a side view of the bike?

Not in this file. The six-view touring motorcycle in this category has the side elevation, plus fronts and plans.

What are the four layers for?

They divide the linework into four groups. Turn one or two off to simplify the machine for a small-scale plot.
