Two-Family House Floor Plans on an 8 × 16 m Lot
Three storey plans and a facade of a narrow two-family house, dimensioned in metres with Spanish room names.
Up to 100 library downloads per day across all libraries. Resets at 00:00 UTC.
DWG is the original file. DXF is written from it on request. Open in CAD loads it into the free browser CAD — nothing to install, no account.
Specifications
- Format
- DWG R2018 · DXF R2000 on request
- Units
- inches
- Size
- 210 × 356 in (width × height)
- Entities
- 1,673 — 571 lines, 492 polylines, 221 text labels, 113 hatches, 105 dimensions, 85 circles, 39 block references, 24 paragraph texts, 14 arcs and 9 leaders
- Layers
- LINEAS01P-SANITTCk MurosCk TexturasCk TextosCk MueblesCASCOCk Achurado MurosCk CascoProyeccionLayer1+6 more
- Block definitions
- none — plain geometry
- File size
- 306 KB
- Updated
About this block

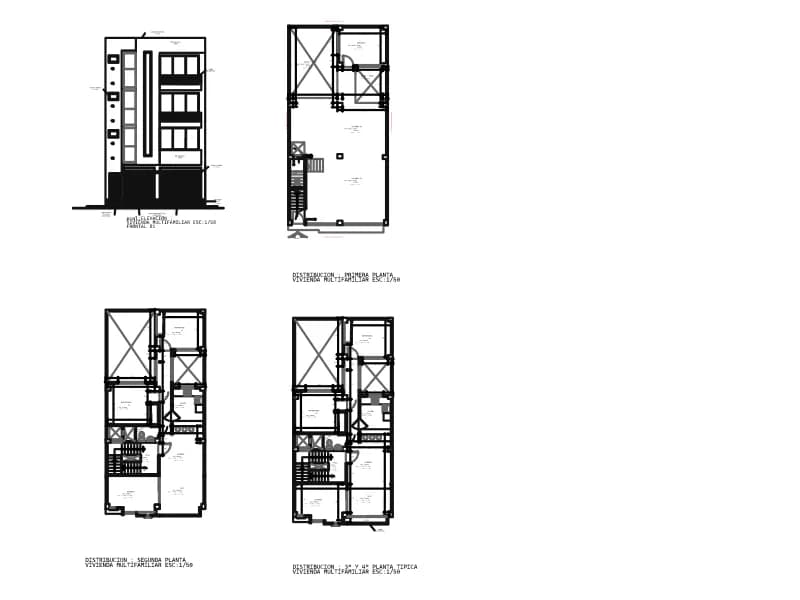

Four drawings make up this set: a front elevation and three floor plans of a narrow multi-family house on a plot labelled LINDERO DE PROPIEDAD 8.00 m by 16.00 m. Room names such as COCHERA (garage), DEPÓSITO and BAÑO, stair notes PASO = 0.25 m and CONTRAPASO = 0.175 m, floor levels like N.P.T. +0.15 and door schedules P = 0.75 × 2.60 are all written in Spanish. The 1,673 model entities are spread over 18 layers (Ck Muros, Ck Textos, Ck Muebles, CASCO, P-SANIT) with 105 dimensions and 13 blocks, including a washing machine.
This is a realistic small-lot housing study for Latin American and Mediterranean plots: two units stacked or side by side with a shared stair. Copy a single floor plan for a layout exercise, or use the whole set as a template for narrow-plot housing. The Spanish labels are editable text; the dimensions are real drawing objects and will update if you stretch the plan. Everything is drawn in metres.
