Public Restroom Building — Plans, Elevations and Fixtures
Set of fifteen red drawings of a prefabricated men's and women's restroom building, in feet and inches.
Up to 100 library downloads per day across all libraries. Resets at 00:00 UTC.
DWG is the original file. DXF is written from it on request. Open in CAD loads it into the free browser CAD — nothing to install, no account.
Specifications
- Format
- DWG R2018 · DXF R2000 on request
- Units
- inches
- Size
- 862 × 615 in (width × height)
- Entities
- 144,069 — 122,965 lines, 10,892 arcs, 3,885 polylines, 3,005 ellipses, 1,588 circles, 1,215 splines, 218 solid fills, 111 paragraph texts, 86 text labels, 73 hatches, 16 image references and 15 block references
- Layers
- 2 (layer 0)
- Block definitions
- none — plain geometry
- File size
- 5.4 MB
- Updated
About this block

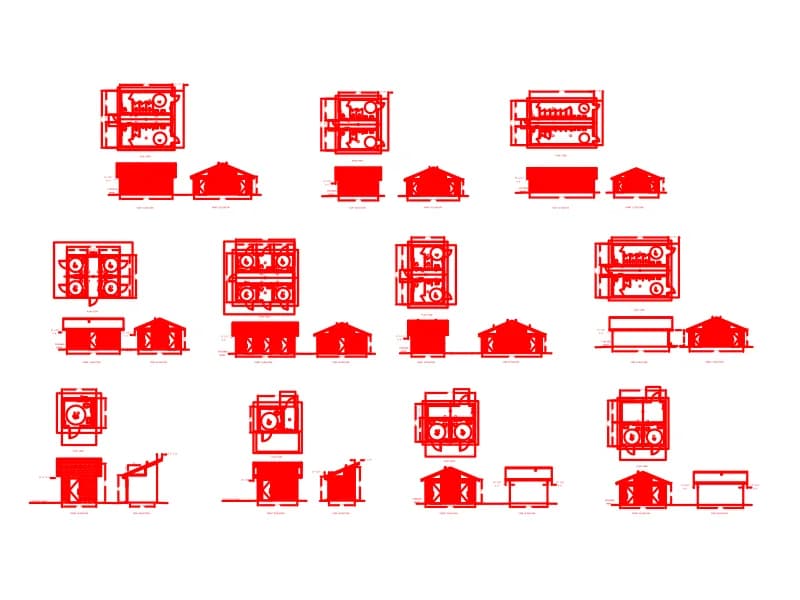

Fifteen drawings in red cover a prefabricated restroom block: plan views labelled MEN and WOMEN, front and side elevations with a pitched roof, and enlarged fixture views with imperial dimensions such as 25'-4" BUILDING, 8'-0" and 17 1/2" O.H. Two of the block definitions are very dense rendered fixture fronts (over 26,000 lines in one), which is why the file carries 144,069 entities and weighs about 5.5 MB. Sixteen embedded image references and 197 texts are also present, and the drawing spans about 1,340 by 560 inches.
Park, campground and roadside-facility designers can lift a complete restroom footprint from this set, or take just the elevations for a planning submission. Because the file is heavy, insert it as an external reference or copy only the plan you need into a clean drawing. It is drawn in inches; scale by 25.4 for a millimetre project and expect the rendered fixture blocks to slow regeneration in weaker machines.
