Sixteen of these files are dimensioned room plans from one Spanish-labelled healthcare set, each a small department drawn with wall thicknesses, doors, hatched construction and its own pair of dimensions: surgery, general medicine, paediatrics, psychology, dentistry, nutrition, the kitchen and its food store, washing and sterilising, clean and dirty linen stores, a trolley bay, a wheelchair bay, staff toilets and changing rooms, and a laundry with drying, ironing and sewing. Rooms run from 2.3 by 3.7 up to 8.4 by 7.1 units. The seventeenth file holds 10,604 entities of operating-theatre and medical equipment.

Health planning works at 1:50 for the room and 1:100 for the department, and these plans serve both because the walls are drawn as real thicknesses rather than single lines. Use them to test whether a brief fits an existing shell: insert the room, align its door to your corridor and read the dimensions already in the file. Layers arrive as MUROS, PUERTAS, HATCH, TEXT and MOB, so map walls, doors, hatching, text and furniture onto your own standard before the drawing goes out for comment.

17 blocks · every one as DWG and DXF · free, no sign-up

Plan of a hospital dry food store with two labelled shelving banks and a central aisle

Almacen Alimentos

Dry goods store plan for a hospital kitchen, 3.30 by 4.45 m, shelved on both long walls.

40 KB · 40 entities

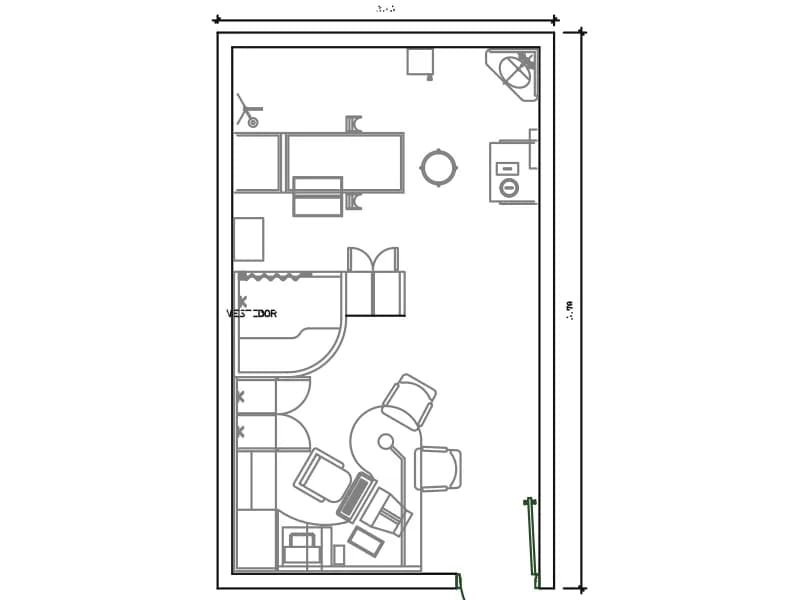

Plan of a hospital surgery room with treatment counter, changing cubicle and consulting desk

Cirugia

Minor surgery room in plan, 3.45 by 5.70 m, with a curtained changing cubicle and a desk.

59 KB · 524 entities

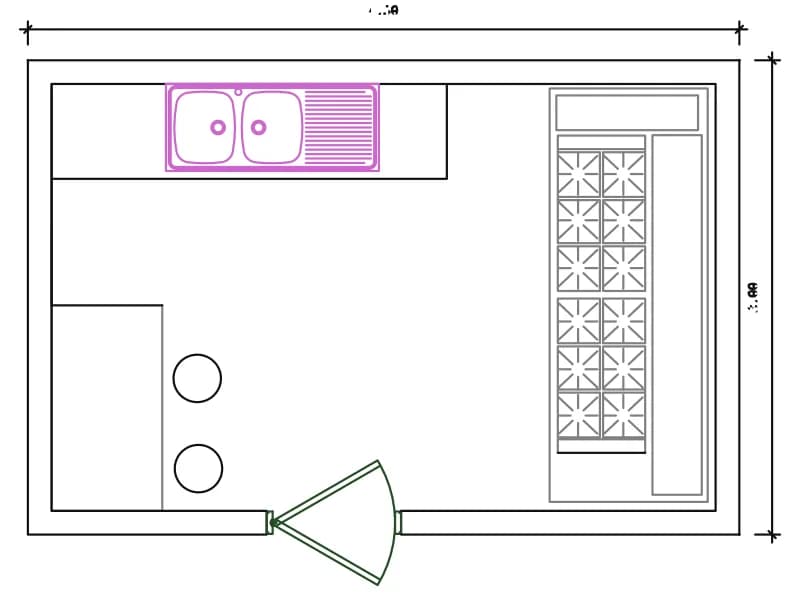

Plan of a hospital kitchen with double-bowl sink, two-burner hob and tall shelving rack

Cocina

Institutional kitchen plan, 4.50 by 3.00 m, with sink run, two-burner hob and shelving.

45 KB · 180 entities

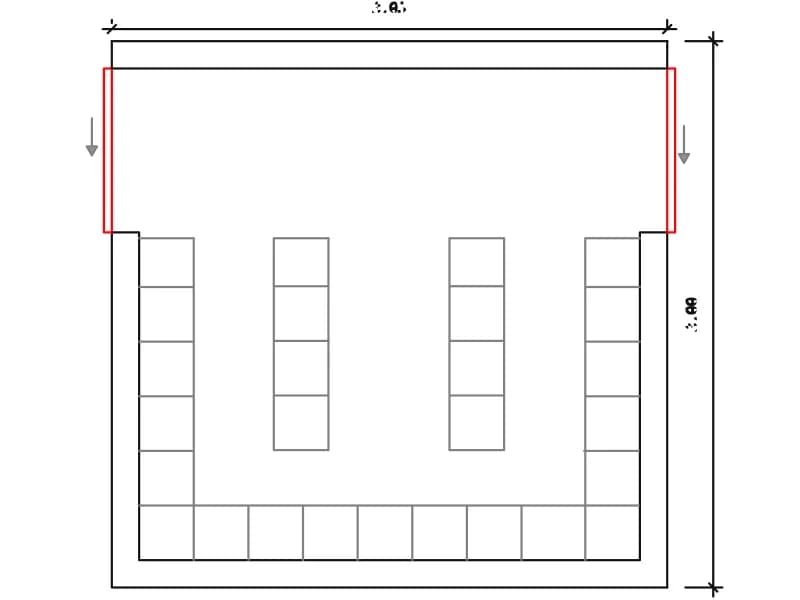

Plan of a hospital clean linen store with U-shaped shelving and two island racks

Deposito Ropa Limpia

Clean linen store plan, 3.05 by 3.00 m, shelved on three walls with two island racks.

38 KB · 56 entities

Plan of a hospital soiled linen store with four wheeled hampers and a shelf bench

Deposito Ropa Sucia

Soiled linen store plan, 2.20 by 3.55 m, with four wheeled hampers and a corner shelf.

39 KB · 54 entities

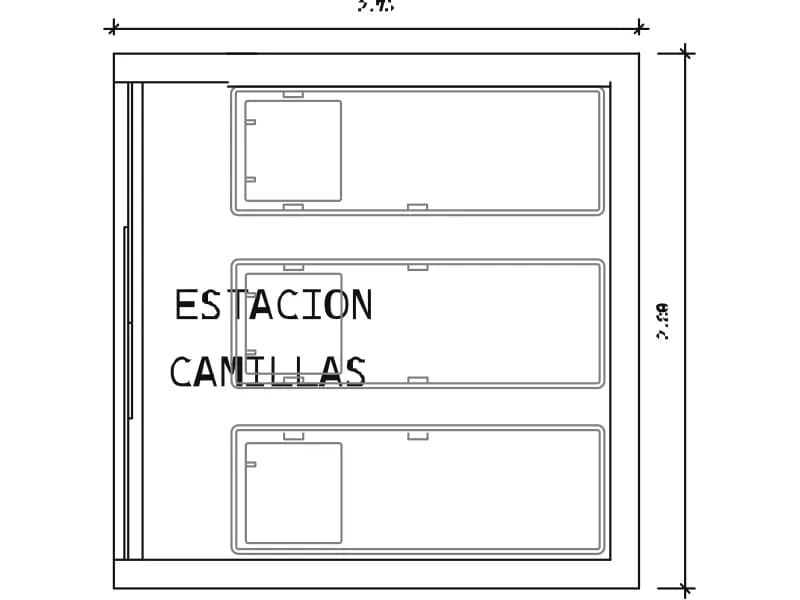

Plan of a hospital stretcher bay with three patient trolleys parked side by side

Estacion Camillas

Parking bay for three stretcher trolleys, 2.75 by 2.80 m, labelled on the plan.

40 KB · 53 entities

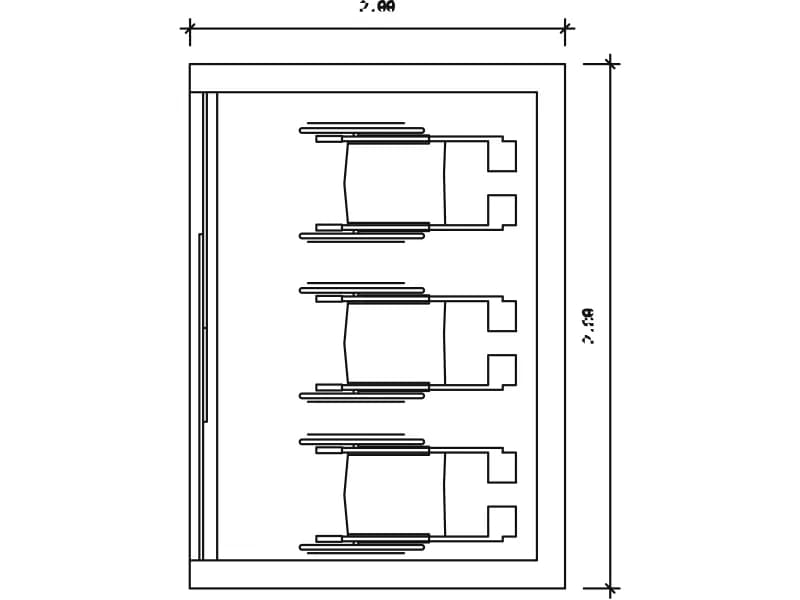

Plan of a hospital wheelchair station with three wheelchairs parked against a wall

Estacion Silla DE Ruedas

Wheelchair station in plan, 2.00 by 2.80 m, with three chairs parked against the wall.

40 KB · 24 entities

Plan of a hospital laundry zoned for washing, drying, ironing and sewing

Lavado ,secado , Planchado Y Costura

Laundry plan, 4.55 by 6.35 m, zoned for washing, drying, ironing and sewing.

40 KB · 103 entities

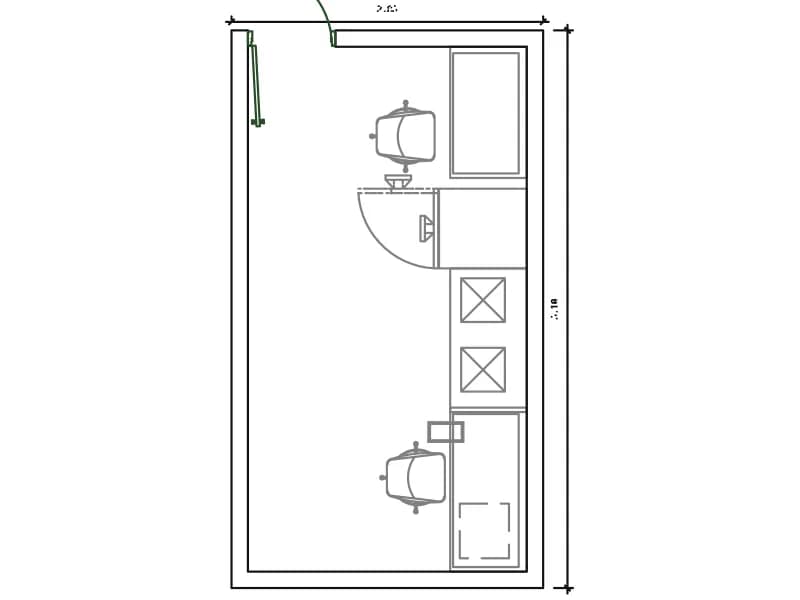

Plan of a hospital wash and sterilisation room with sinks, autoclaves and a hatch

Lavado Y Esterelizacion

Wash and sterilisation room, 2.85 by 5.10 m, with deep sinks, autoclaves and a hatch.

49 KB · 83 entities

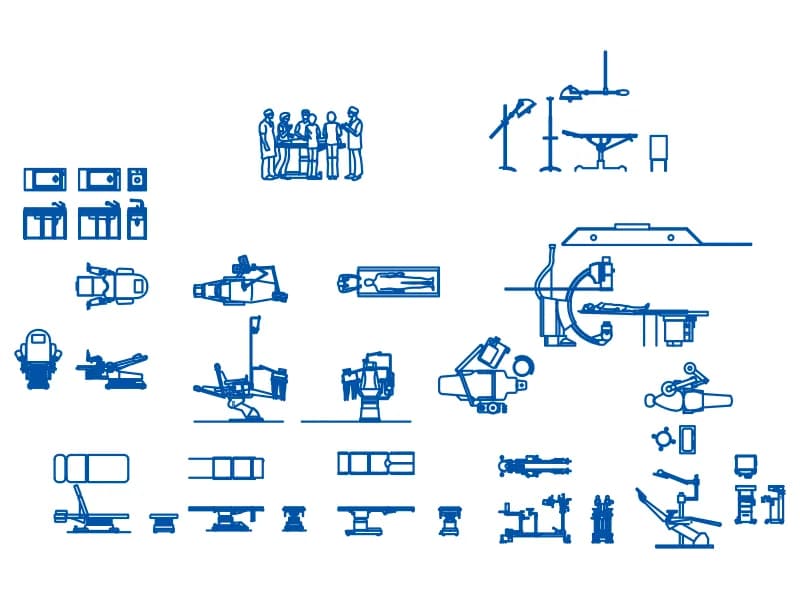

Sheet of medical and operating room equipment CAD blocks in plan and elevation

Medical & Operating Room Equipment Set

Sheet of about forty medical equipment symbols in plan and elevation for theatre and clinic plans.

430 KB · 10,604 entities

Plan of a general practice consulting room with desk, curtain and examination couch

Medicina General

Consulting room plan, 3.30 by 5.05 m, with desk, curtain, examination couch and basin.

76 KB · 406 entities

Plan of a nutrition consulting room with a desk, patient chairs and an examination couch

Nutrivion

Dietetics consulting room plan, 3.30 by 5.05 m, with desk, patient chairs and a couch.

56 KB · 406 entities

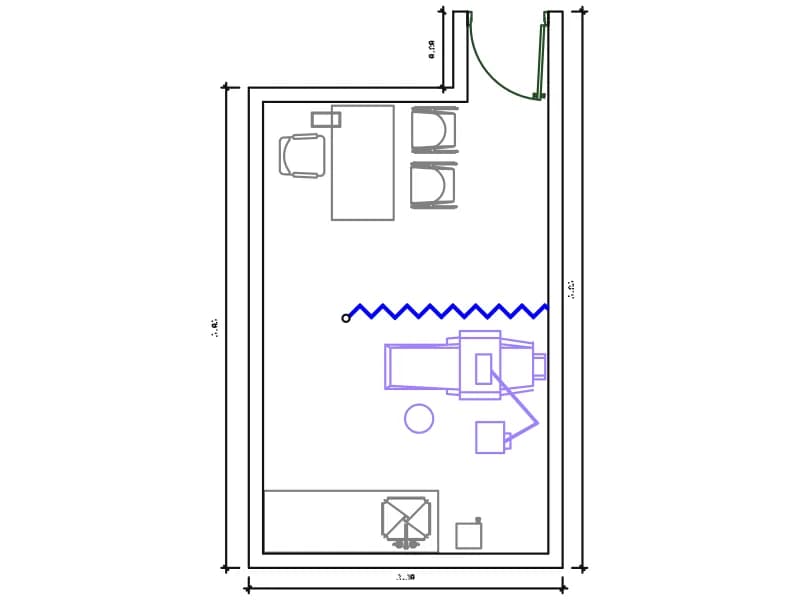

Plan of a dental surgery room with dental chair, delivery arm, light and spittoon

Odontologia

Dental surgery plan, 3.30 by 5.05 m, with a dental chair, delivery arm and spittoon.

56 KB · 312 entities

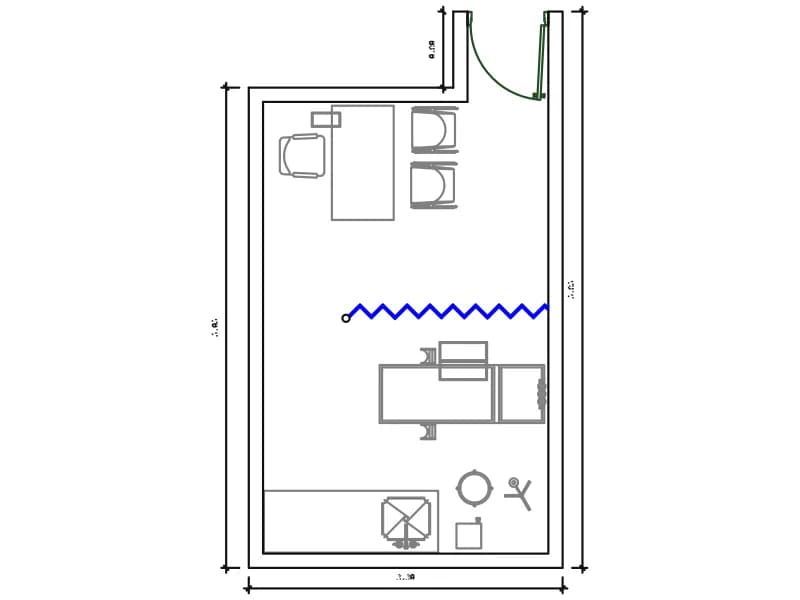

Plan of a paediatric consulting room with desk, curtain, examination couch and basin

Pediatria

Paediatrics consulting room plan, 3.30 by 5.05 m, with desk, curtain and exam couch.

57 KB · 406 entities

Plan of a psychology consulting room with desk, two chairs and an examination couch

Psicologia

Psychology consulting room plan, 3.30 by 5.05 m, with desk, two chairs and a couch.

56 KB · 406 entities

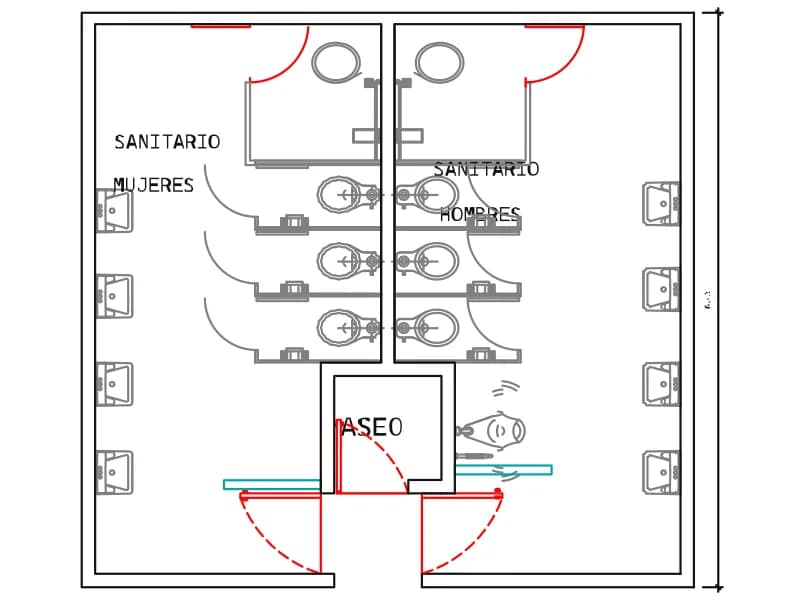

Plan of mirrored men's and women's hospital toilets with cubicles, basins and a cleaner's room

Servicios Higienicos

Mirrored men's and women's toilets in plan, three cubicles each, with a cleaner's room.

56 KB · 167 entities

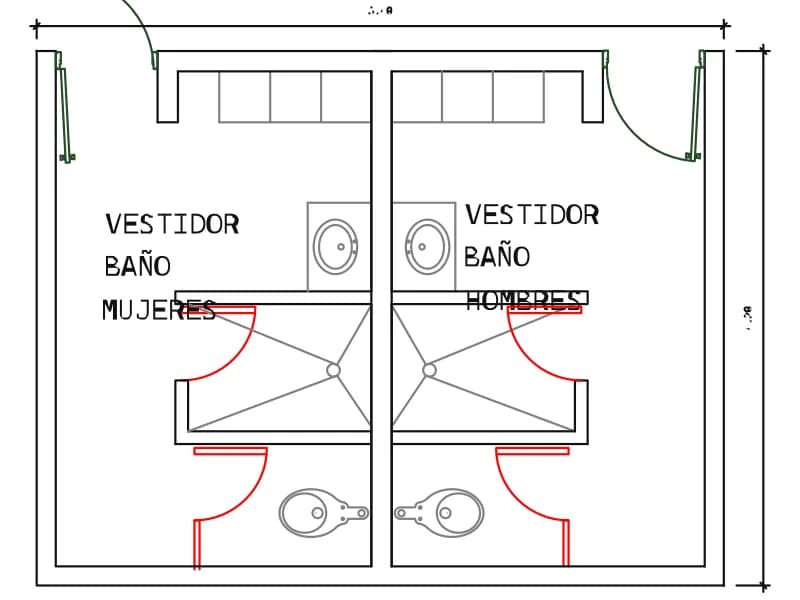

Plan of mirrored staff changing rooms with lockers, shower, WC and washbasin

Vestidores +SH Servicio

Mirrored staff changing rooms with lockers, shower, WC and basin, 5.40 by 4.20 m.

47 KB · 142 entities

Questions

What do the Spanish room names mean?

CIRUGIA is surgery, ODONTOLOGIA dentistry, NUTRICION nutrition, COCINA kitchen, ALMACEN ALIMENTOS the food store, and DEPOSITO ROPA LIMPIA and SUCIA the clean and dirty linen stores.

Are the rooms dimensioned?

Most carry two or four dimension entities giving the internal width and length, so the brief can be checked without measuring anything.

Is there equipment as well as the rooms?

One file is a full sheet of medical and operating-room equipment, 10,604 entities in a 20 by 17 unit spread, ready to drop into the room plans.
